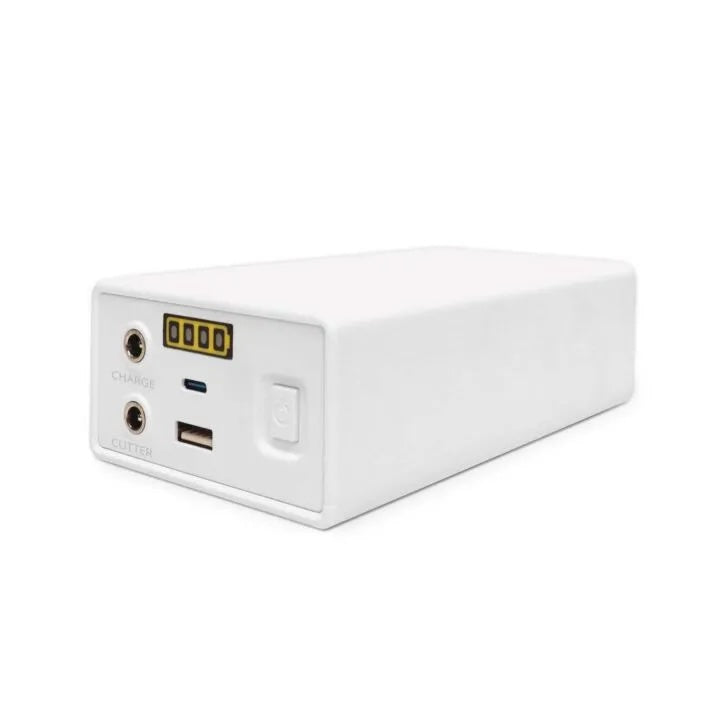

GO! 57126 Bolt Battery Pack

BATTERY PACK SPECIFICATIONS

• Lithium ion Battery Pack
• Rated Capacity: 17000mAh (5V-3A)
• Capacity: 21.6V/4.4Ah 96 Wh
• Size: 6.3"W x 3.2"D x 1.9"H (16 cm x 8.1 cm x 4.8 cm)
• Weight: 1.63lbs (.74kg) - fits in the GO! Fabric Cutter Backpack (Black) (55891)
• Input:
  • DC Plug: 24V/5.5A
  • USB-C: 5V/3A, 9V/3A, 12V/3A, 15V/3A, 20V, 2.25A, 45W Max
• Output:
  • DC Plug: 24V/4A
  • USB-A: 5V/3A, 9V/2A, 12V/1.5A, 18W Max
  • USB-C: 5V/3A, 9V/3A, 12V/3A, 15V/3A, 20V/2.25A, 45W Max

HOW TO OPERATE

• Power On/Off
  • ON: Push the button to turn battery pack on.
  • OFF: Push the button again to turn battery pack off.
• Capacity Display: When battery is powered "ON", the four power indicator lights will illuminate, showing the current battery power and capacity.

CHARGING INSTRUCTIONS

• Connect AC/DC charger to a power outlet (100-240V compatible).
• Push Power Switch to turn battery pack “ON”. Important: Always turn battery on before plugging in charger.
• Plug AC/DC charger into battery pack.
• Check charger’s LED indicator:

  • RED: Battery is charging.
  • GREEN: Charging is complete or the charging circuit is open. If light turns GREEN immediately, make sure Power Switch has been turned “ON”.
• During charging, the LED will change from RED to GREEN once the battery reaches approximately 95% charged.
• Push the power switch again to turn battery pack “OFF” after charging to open the circuit and prevent unnecessary LED power consumption.
• Estimated full charge time:

  • Full charge time ≈ Battery capacity ÷ Charger output current.

SAFETY & STORAGE GUIDELINES

Contains a lithium‑ion battery.
⚠ CAUTION: Risk of fire or burns. Do not open, crush, expose to impact, heat above recommended temperatures, or incinerate. Always follow manufacturer’s instructions.
Shipping Notice: Due to being flammable, the battery pack can only be shipped via Ground Shipping.

• Store properly: Keep battery pack in a cool, dry, indoor location.
• Long-term storage: While battery can be stored for more than six months, charge it every three months to help extend its overall lifespan.
• Do not modify: Never open, disassemble, or alter the battery pack.
• Correct connection: Do not reverse the input or output connections.
• Keep out of reach of children: Store and operate battery pack safely away from young children.
• Use approved chargers only: Always use a qualified, compatible charger.
• If something seems wrong: Stop using product immediately if you notice any unusual behavior or malfunction during charging
